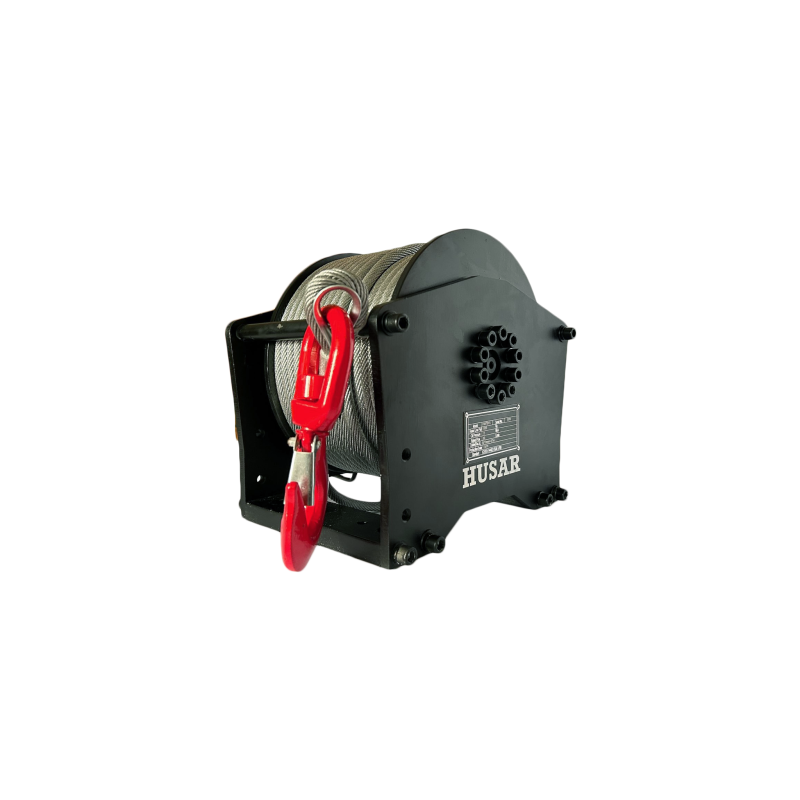

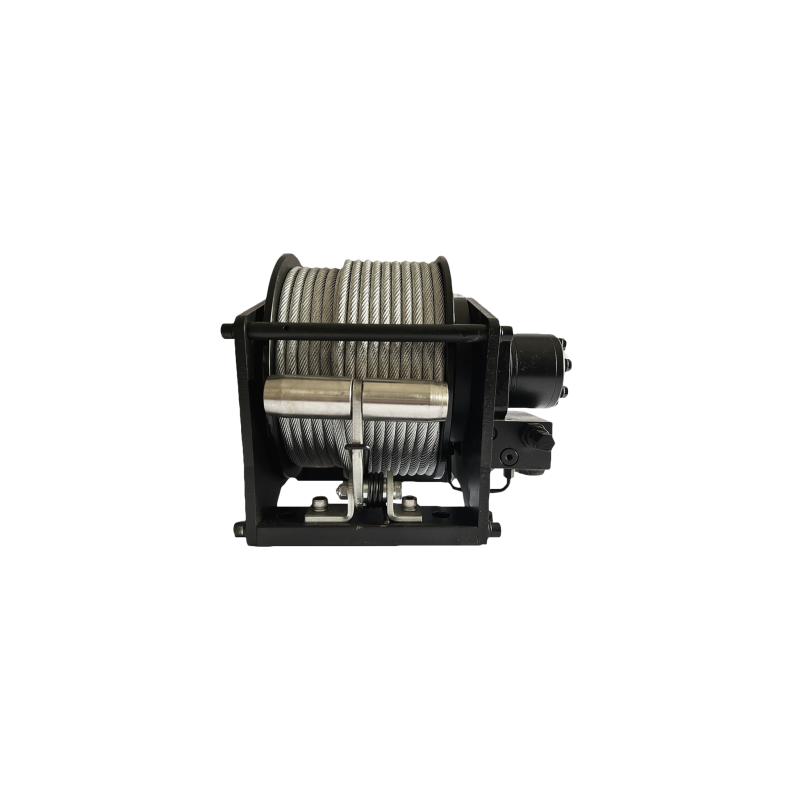

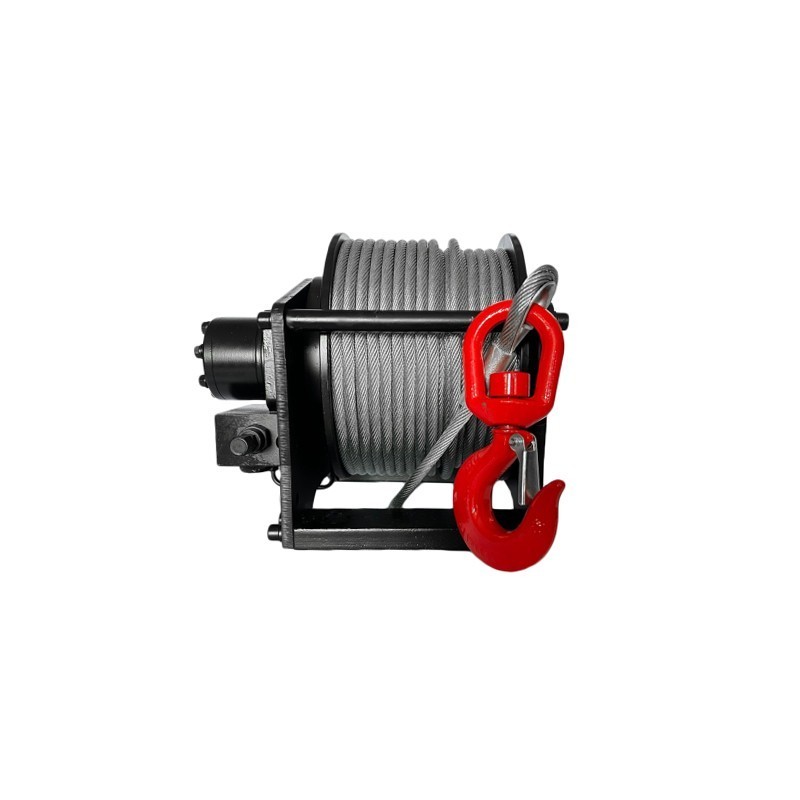

BST H 3300lbs
EAN: 5905544780065
Product code: HUS-039
| BST H 3300lbs | Technical specifications |
| Pull capacity (single line) | 3300 lbs / 1500 kg |
| Oli flow | 5～60 L/min |
| Pressure | 13 Mpa |
| Gear | 2-stage planetary |
| Gear ratio | 5,7:1 |
| Rope | 37 m x 10,2 mm |
| Weight | 71 kg |
| Dimentions | 347 mm x 312 mm x 298 mm |
Pulling Force Depending on Rope Layer
| Rope Layers | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Line Pull (lbs) | 4372 | 3945 | 3594 | 3300 |
| Line Pull (kg) | 1983 | 1789 | 1630 | 1500 |
| Rope on Drum (m) | 8 | 17 | 27 | 37 |
| Line Speed (m/min) | 20.2 | 22.4 | 24.6 | 26.8 |
| Valmistaja | Husar |
| Jännite | Hydraalinen |
| Soveltuva käyttö | Teollisuus |
| Vetokyky | 3300 lbs / 1500kg |
